Tornio cnc usato Okuma LCC 15-2S del 2003

Used Okuma LCC 15-2S cnc lathe from 2003

Base parameters

Swing over bed : 200 mm

Swing over cross slide : 320 mm

Distance between centres : - mm

Clamping taper in spindle : - .

Main motor output : 7 kW

Dimensions l x w x h : 1995x1900x1735 mm

Machine weight : 3800 kg

Turn table diameter : 200 mm

Turning lenght : 320 mm

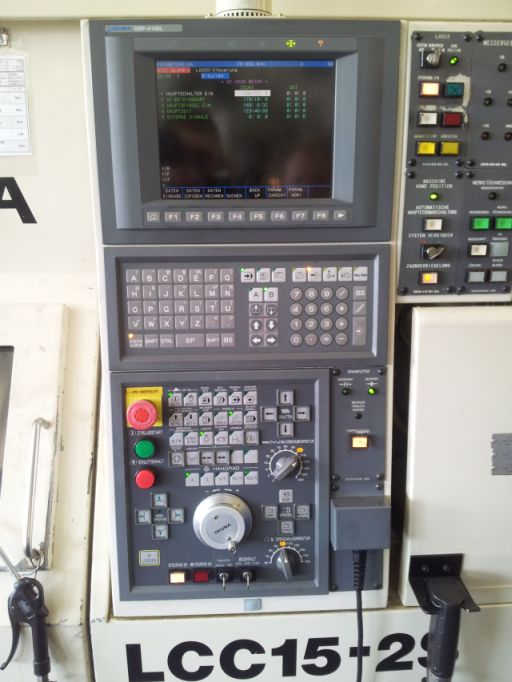

control: Okuma OSP-100L
4-axis machine

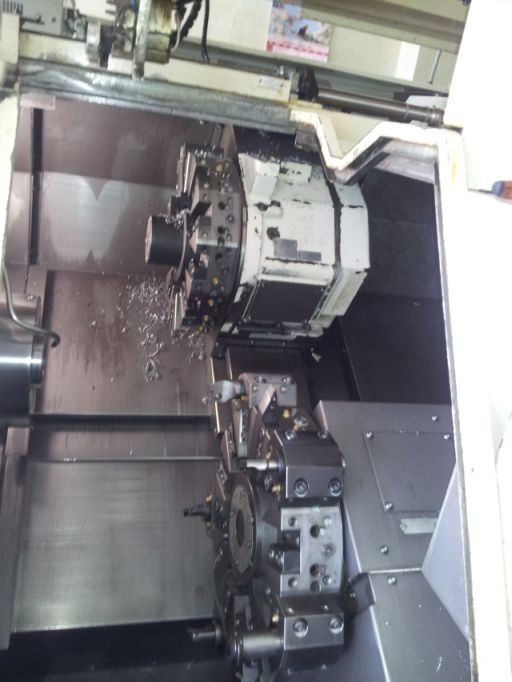

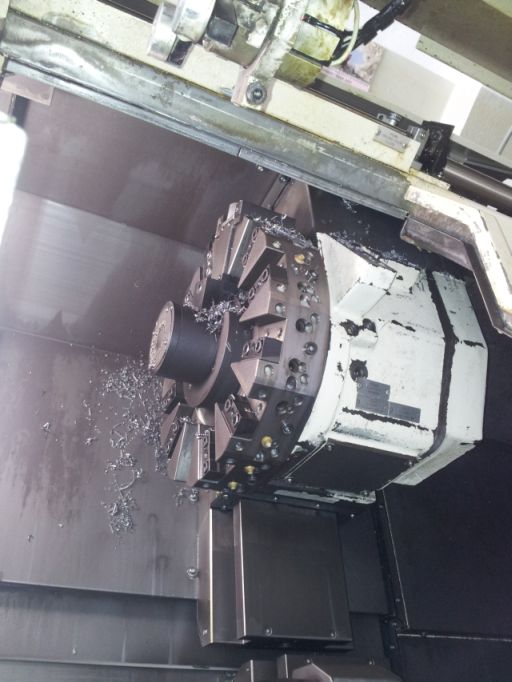

2 x turret head: 8+8 positions
max. turning diameter: 260 mm
swing over bed: 450 mm
swing over carriage: 320 mm
swing over cross-slide: 300 mm
spindle bore: 62 mm
spindle speed: 35-4200 rpm
spindle nose: JIS A2-6

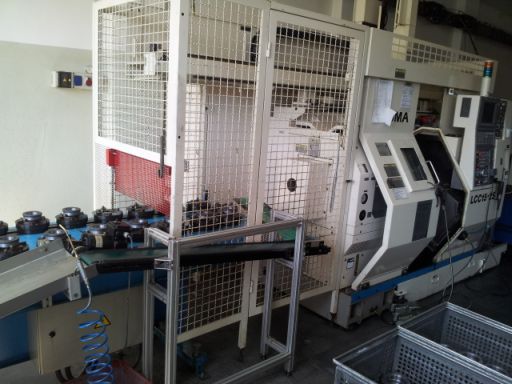

Equipped with automatic feeding line.

hours: cca 30-40.000
