Make

MORI SEIKI

Type

NL 3000 Y / 3000

Year of manufacture

2006

Details

turning diameter

302 mm

turning length

3123 mm

control

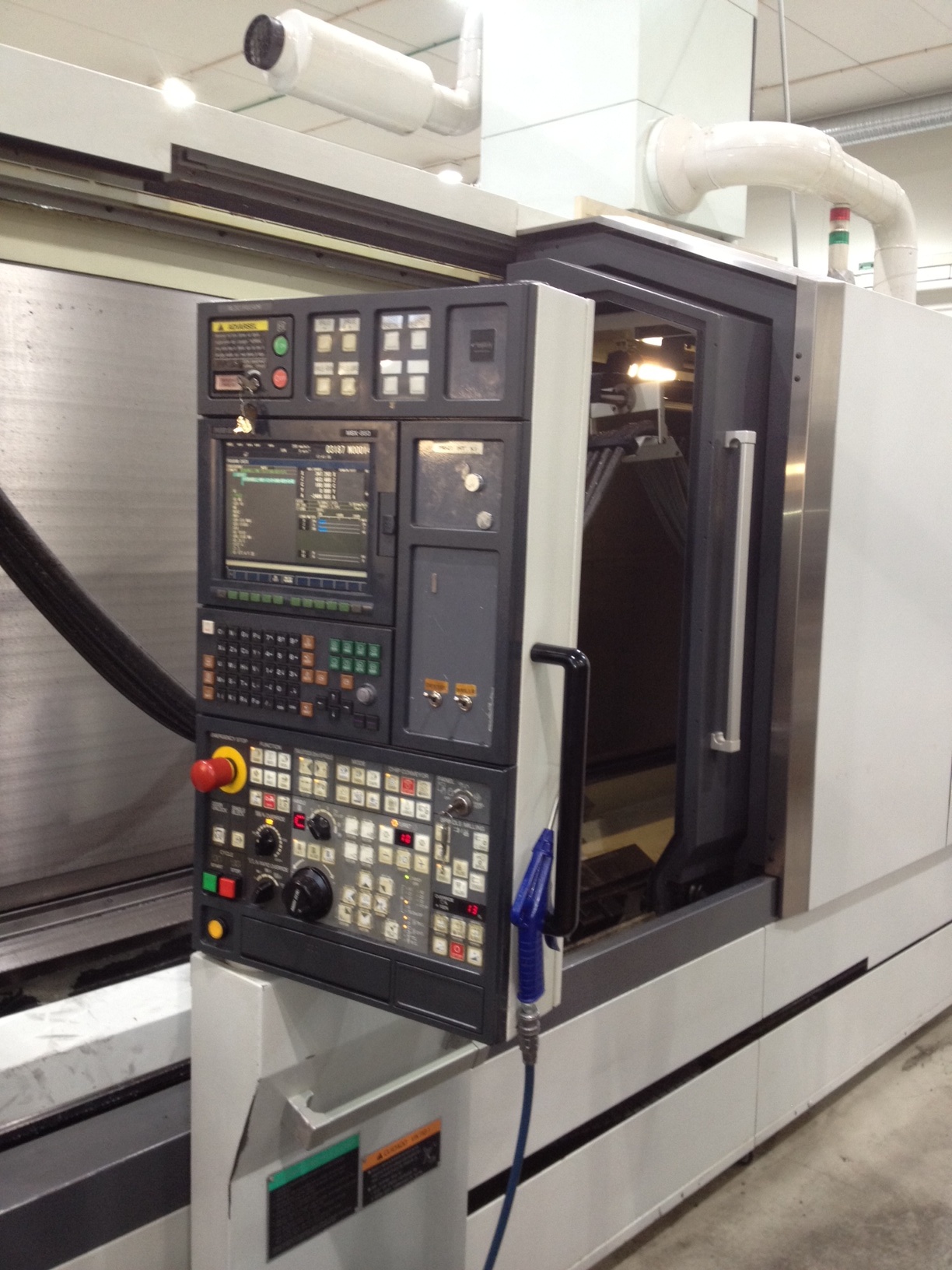

MSX 850 MAPPS III

swing dia.

825 mm

max. turning diameter

430 mm

bar material dia.

90 mm

travel -x axis

280 mm

travel -y axis

120 (+-60) mm

travel -z axis

3170 mm

rapid travel - longitudinal/face

30 / 30 m/min

rapid traverse Y-axis

10 m/min

Spindle RPM

3000 1/min

spindle drive

30 / 25 kW

Spindle Torque

1025 Nm

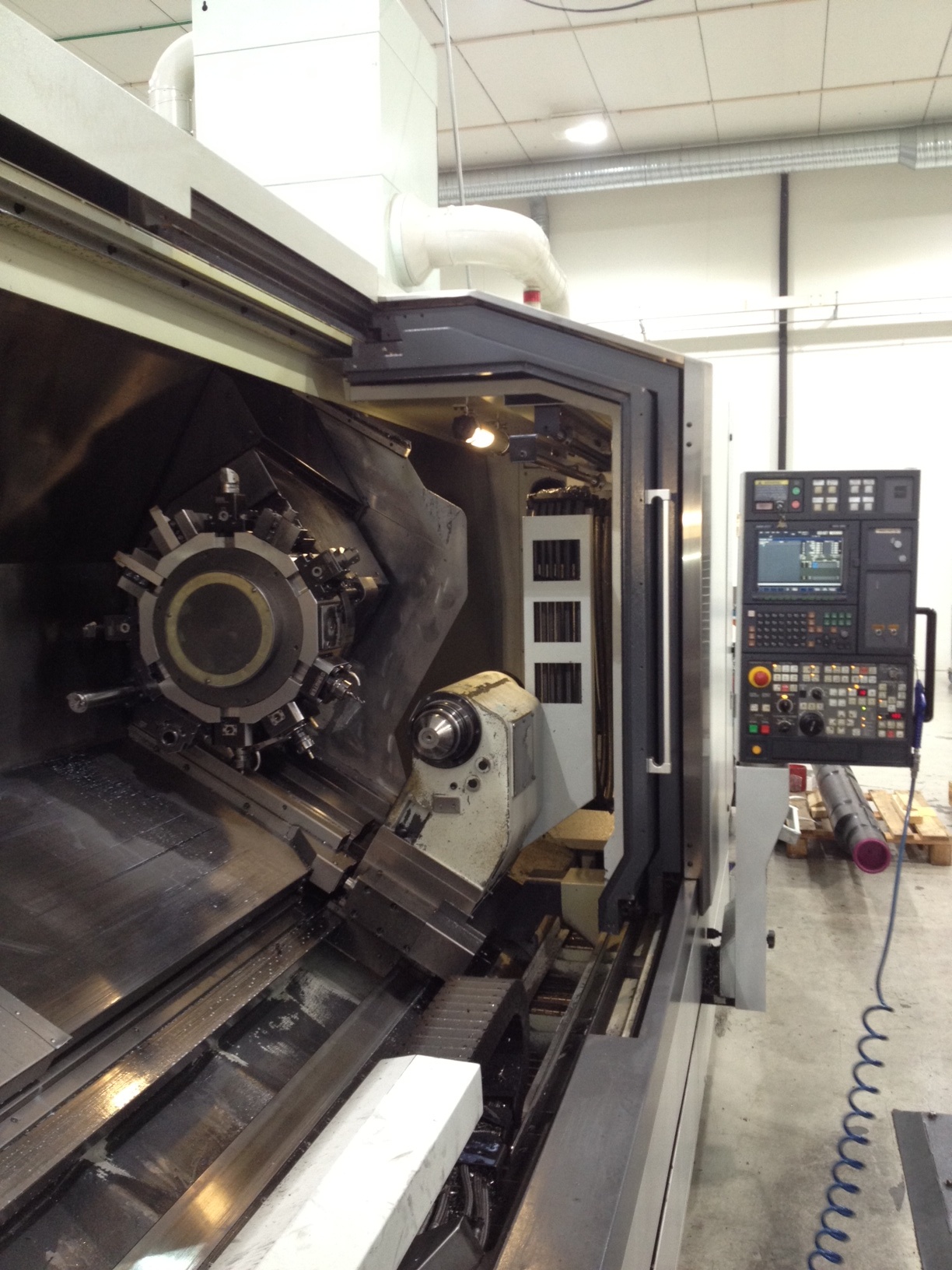

turret stations / rotary tool stations

12 / 12

5.5/3,7 kW

speed of driven tools

6000 1/min

Programmable Tailstock

Tailstock Travel

3164 mm

tailstock quill stroke

150 mm

tailstock quill taper MT

5

tailstock quill diameter

150 mm

total power requirement

39,2 kVA

weight of the machine ca.

14 t

dimensions of the machine ca.

8,5 x 2,6 x 2,4 m

Zubehör

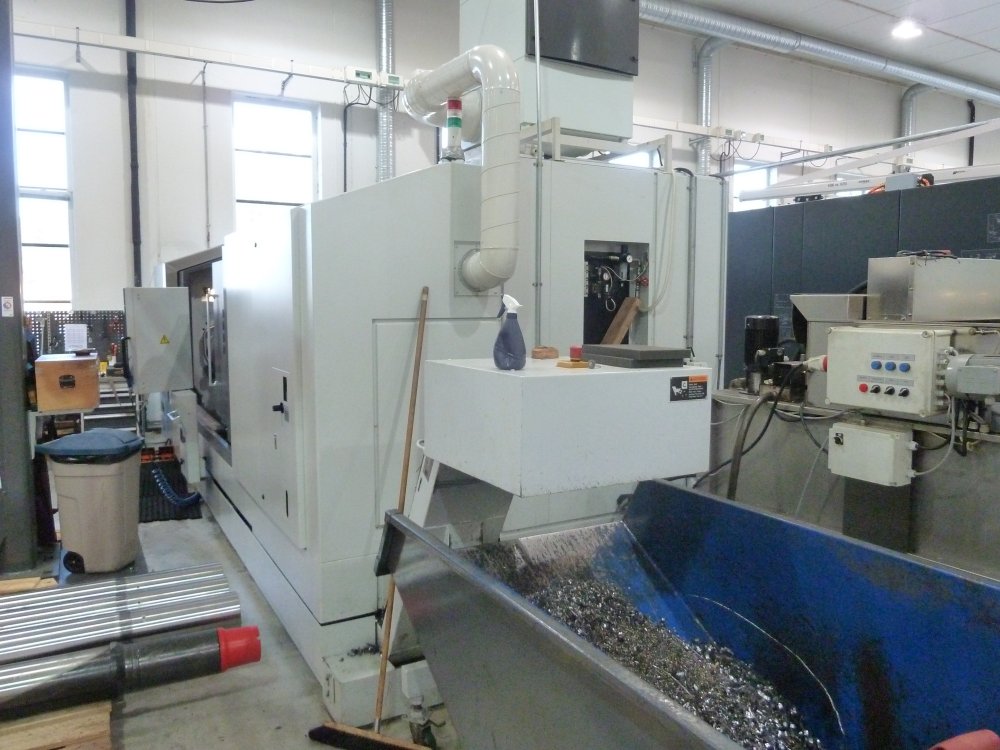

Chip conveyor

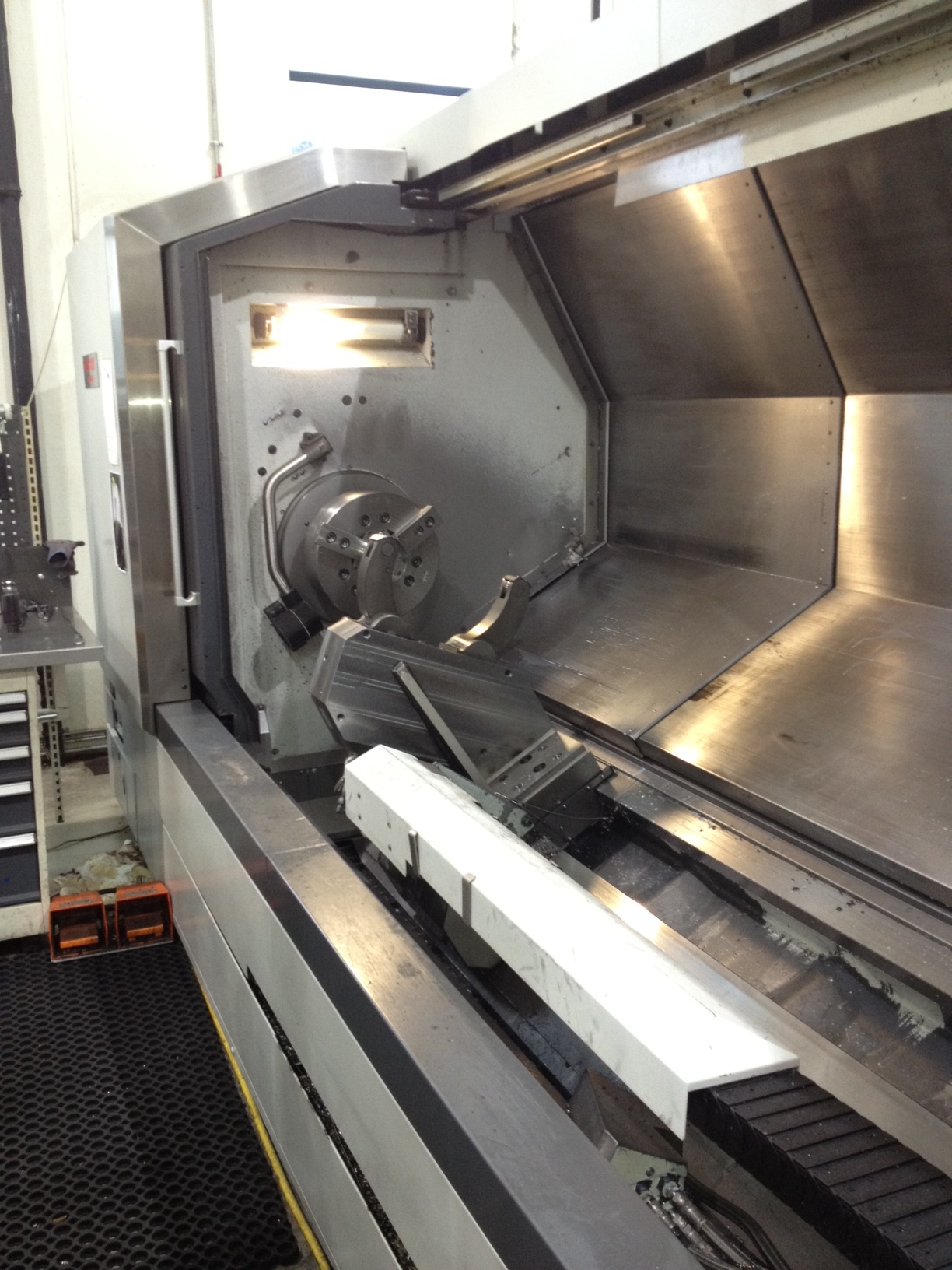

Spindle 1 Chuck

Kitagawa B 215 (380 mm)

Parts and total counter

Signal lamp 3 colors

Memory

600 MB

Registered Programs

400

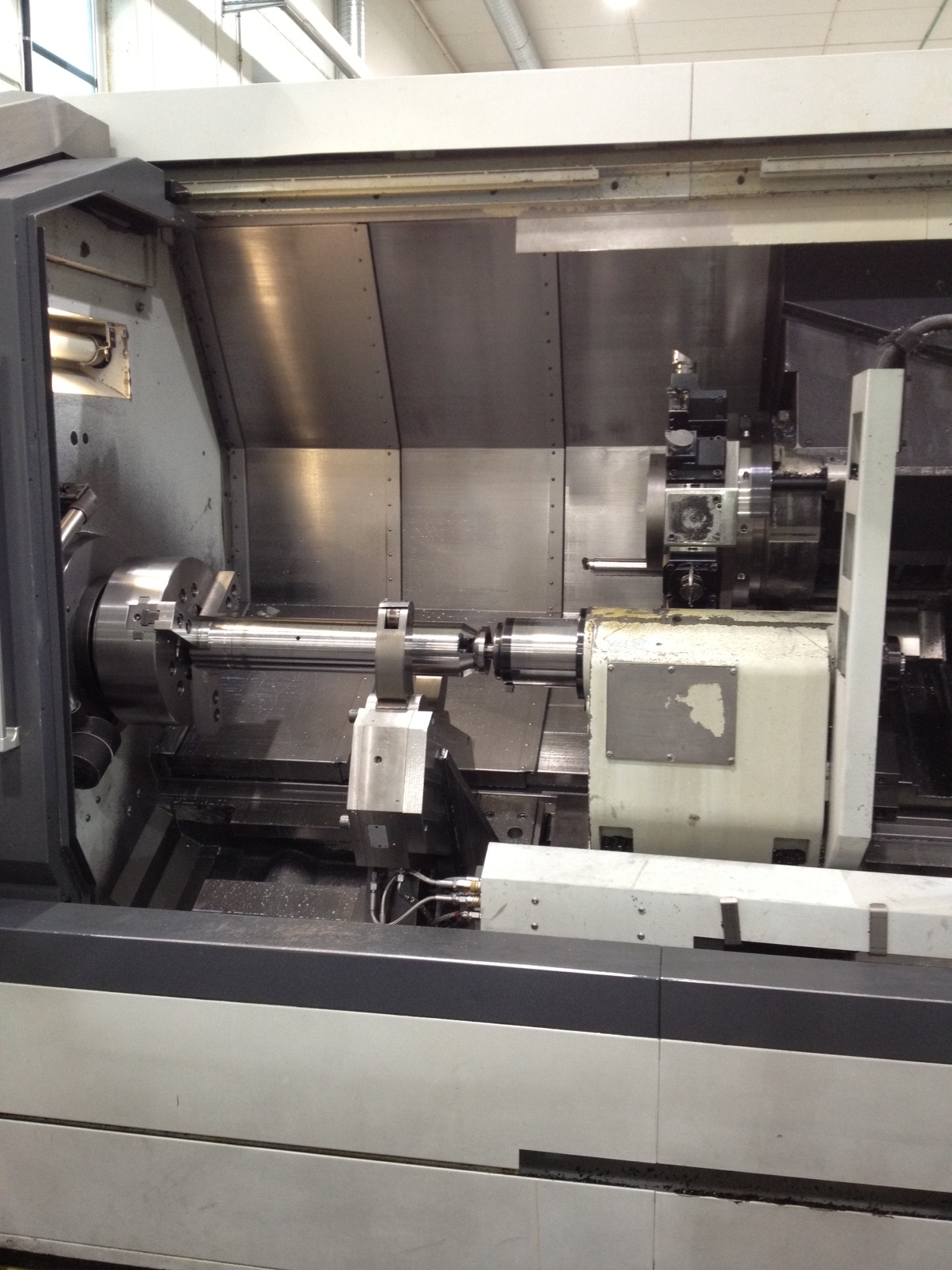

Programmable steadyrest

Atling LZ100-310

Thread re-cutting function

Circular Threading

High pressure coolant 5 bar

Interface for high pressure coolant up to

40 bar

manual tool eye

Description

High precision Turning and Milling Centre with C- and Y-axis and NC-controlled steady rest and tailstock..
Easy programming by MAPPS III Control.
All existing tool holders and live tool holders come with the machine.
