Okuma LVT 300M tornio usato cnc del 2006\2008

Okuma LVT 300M used cnc lathe from 2006\2008

Base parameters

Swing over bed : 320 mm

Travel X-axis : 210+845 mm

Travel Z-axis : 360 mm

Main motor output : 22/15 kW

Machine weight : 6000 kg

Rotation of spindle : 40-4000 /min

Diameter of tailstock spindle : 90 mm

Turn table diameter : 280 mm

Turning lenght : 200 mm

Through-spindle hole : 62 mm

Spindle nose : JIS A2-6 -

Ground plan area of the machine : 1320x3220 mm

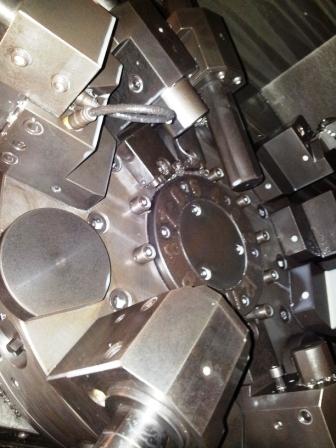

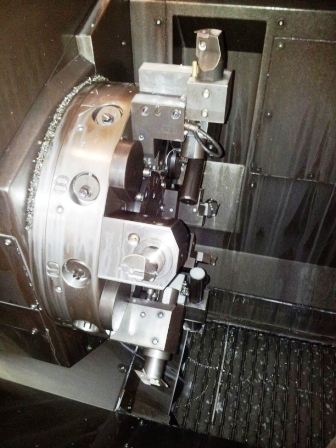

Vertical CNC lathe with driven tools (type V 12, nos. 12), and C-axis for

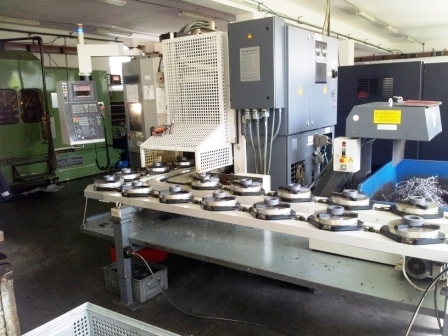

automatic production lines - using spindle to both load and lay off workpieces
thus fully replacing an automatic robot. Excellent rapid feed rates on X travel
(60 m/min) and Z travel (30 m/min) and high-speed head (0,18 sec/index).

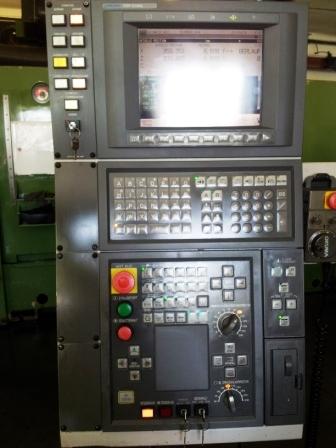

Control OSP-U100L
The machine was put into production in 2008





Codice 0069 emtarf
