Okuma Mac Turn 50 del 2001





Okuma Macturn 50 x 1500

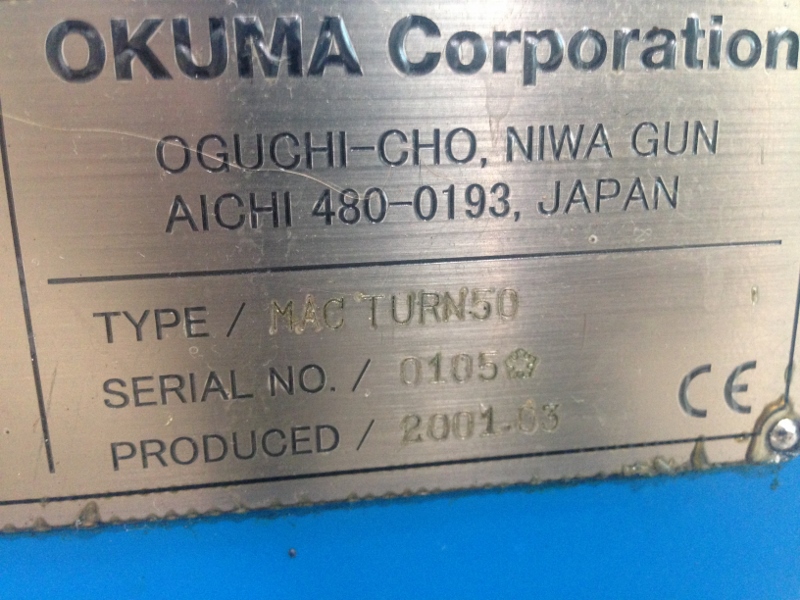

Y.o.M. 2001

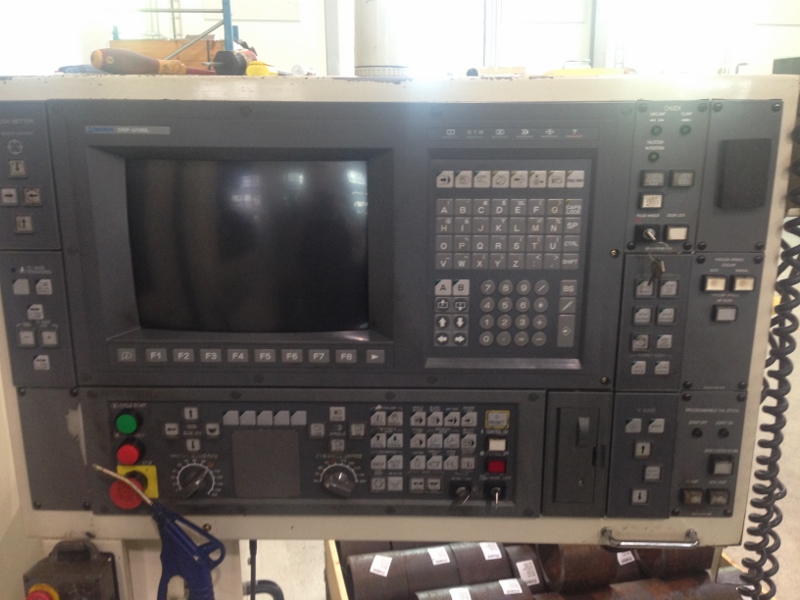

CNC OSP-U100L

Machine specifications

Between centers   1500mm
Swing over bed Dia610mm
Swing over carrige Dia 580mm
Max machining dia Dia 580mm
Max work length 1500mm
Travels X-axis 598mm
Travels Z-axis 1660mm
Travels Y-axis 230mm (+110_-120)
Travels C-axis 360(0,001 increment)
Travels B-axis 1 (360)
Spindle speed 14-3200 rpm/min
Speed range 2 auto range
Spindle nose JIS A2-8
Tapered bore Dia 90 mm
Bearing dia Dia 130mm
M-spindle speed range 40-3000 rpm/min
Rapid traverse x 12m y 12m z20 m/min c100 rpm/min
Tool shank MAS BT50
Magazine capacity 50-tools
Max tool dia Dia 130mm
Max tool length 350 mm
Max tool mass 20kg
Tool selection Random
Tailstock quill Dia 120mm
Tailstock quill tapered bore MT No:5
Tailstock quill travel 170mm
Spindle motor 30/22 kw
M-tool motor 11/7,5 kw

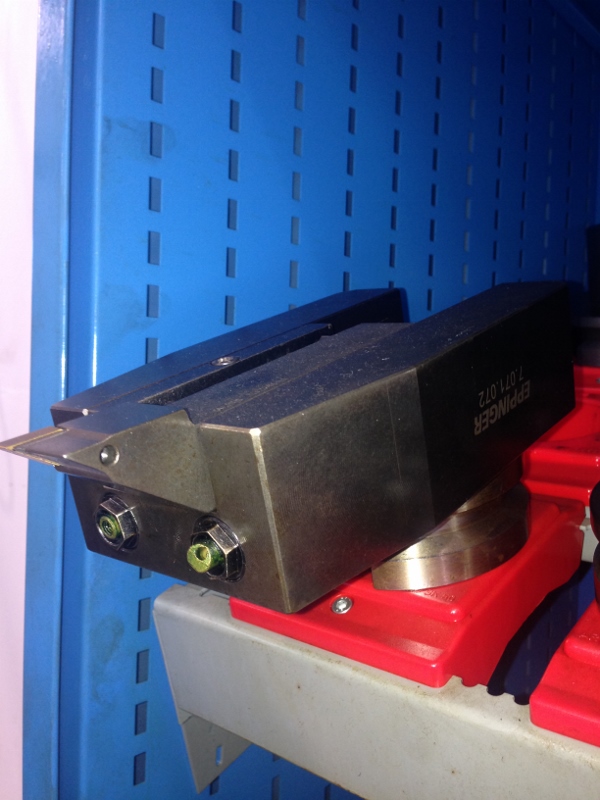

Chip conveyor, Some tooling
